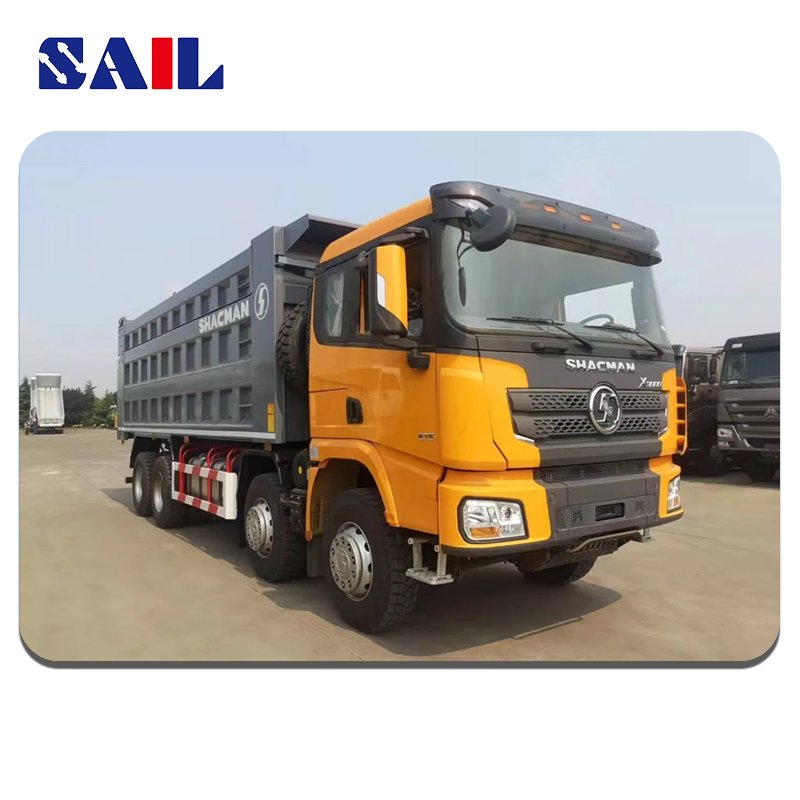

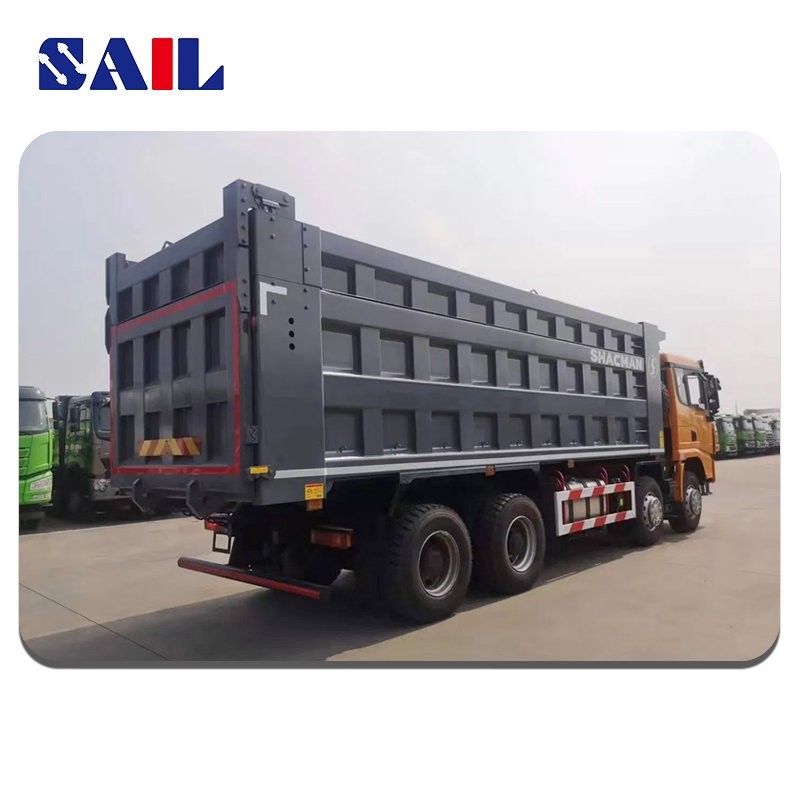

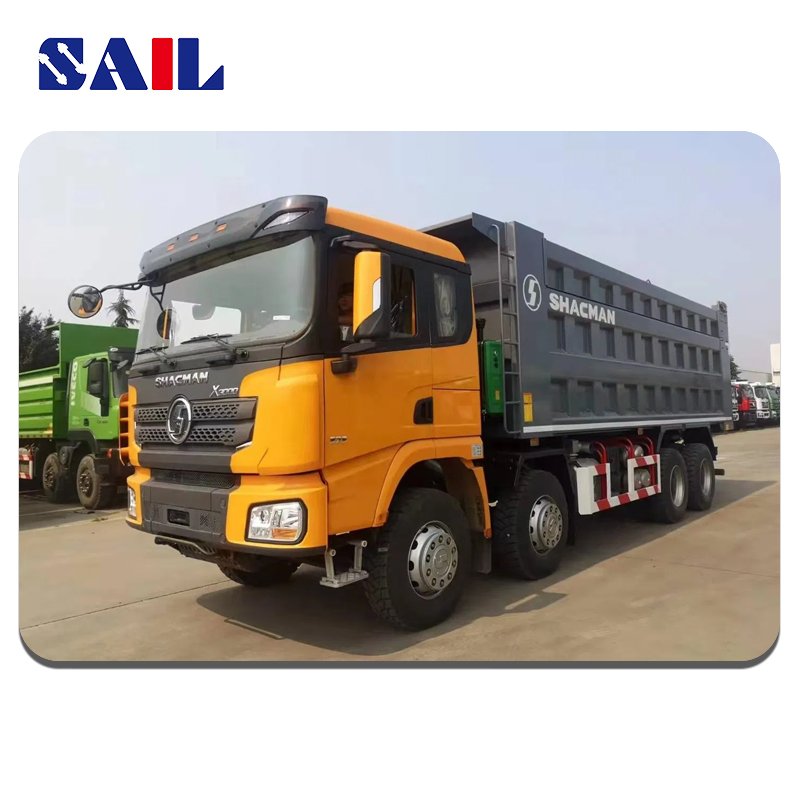

SAIL Used SHACMAN X3000 8X4 Dump Truck
-

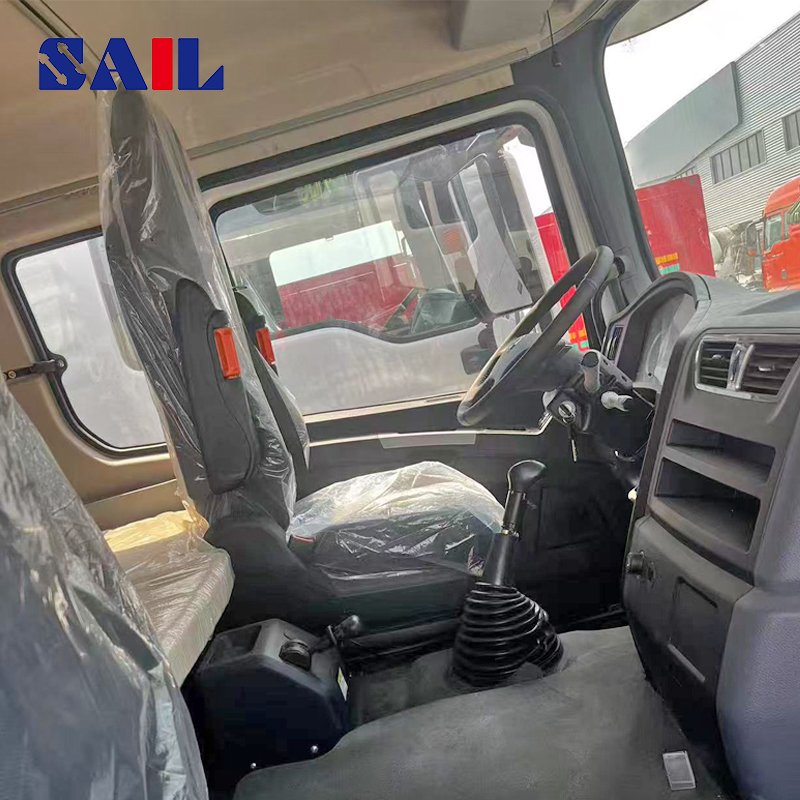

The Shacman Delong X3000 8×4 dump truck is a high-performance vehicle designed for heavy-duty transport and construction applications. It features a powerful Weichai engine paired with a Fast manual transmission, delivering strong power and excellent load capacity. Built on a MAN technology chassis, it comes equipped with multi-leaf spring suspension, a reinforced frame, and a high-strength cargo box, making it suitable for tough road conditions. The cab emphasizes comfort and safety, offering air suspension seats, a multifunction steering wheel, and heated rearview mirrors to enhance the driving experience. Ideal for mining transport, infrastructure projects, and earthwork operations.
Description
| Mainspecifications | |||||||
| MODEL | SX331853386 | ||||||
| Driver position | Left Hand | ||||||
| Driving type | 8*4 | ||||||
| Wheelbase | 1800+3775+1400 | ||||||
| Engine | Brand | WEICHAI | |||||
| Model | WP13.550E501 | ||||||
| Emission Standard/ | EURO V | ||||||
| Rated output power | 550HP | ||||||
| Displacement (L) |
12.54L | ||||||
| Transmission | Brand | FAST | |||||
| Front axle | Brand | MAN | |||||
| Frame | 970-850×320(8+7+8) | ||||||
| Suspension | Front and rear multi-plate springs, four main plates and four riding bolts |
||||||
| oil tank | 600L aluminum alloy fuel tank | ||||||
| Brakes | Running brake:Dual circuit compressed air brake | ||||||
| Parking brake:Air discharging with spring control | |||||||
| Auxiliary brake:Engine exhaust brake | |||||||
| Other options | WABCO imported six-channel ABS/cab air suspension/heat-insulated cab/air bag main seat/color appearance/silver lettering/silver label/aluminum alloy gas tank/metal bumper/integrated daytime running lights with E label/electric Electric heated rearview mirror/electric window shaker/multi-function steering wheel/fixed speed cruise/central lock/side tool box/rear protection/rear axle stabilizer bar/220Ah low temperature battery/eight tail beam/reserved full trailer electrical circuit interface /Emergency call GLONASS system/2kg fire extinguisher/Parking wedge/Chitian large box: Tianzi grid/7600×2300×1500+500/Extended brim/Bottom 10 sides 6/Domestic  φ |
||||||
| Upbody | 7600×2300×1500+500(mm) Bottom plate thickness:10 Side plate thickness:6 |
||||||
