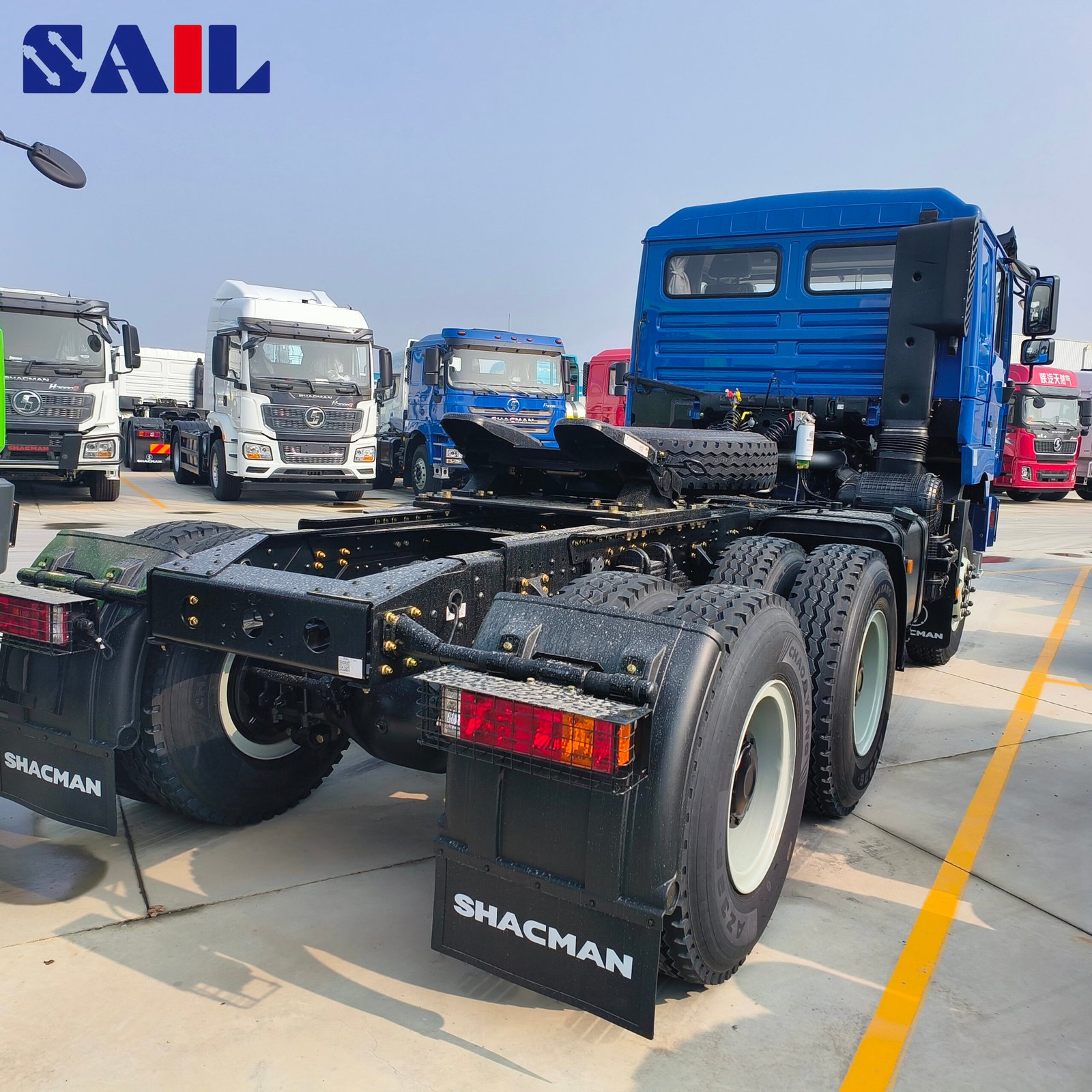

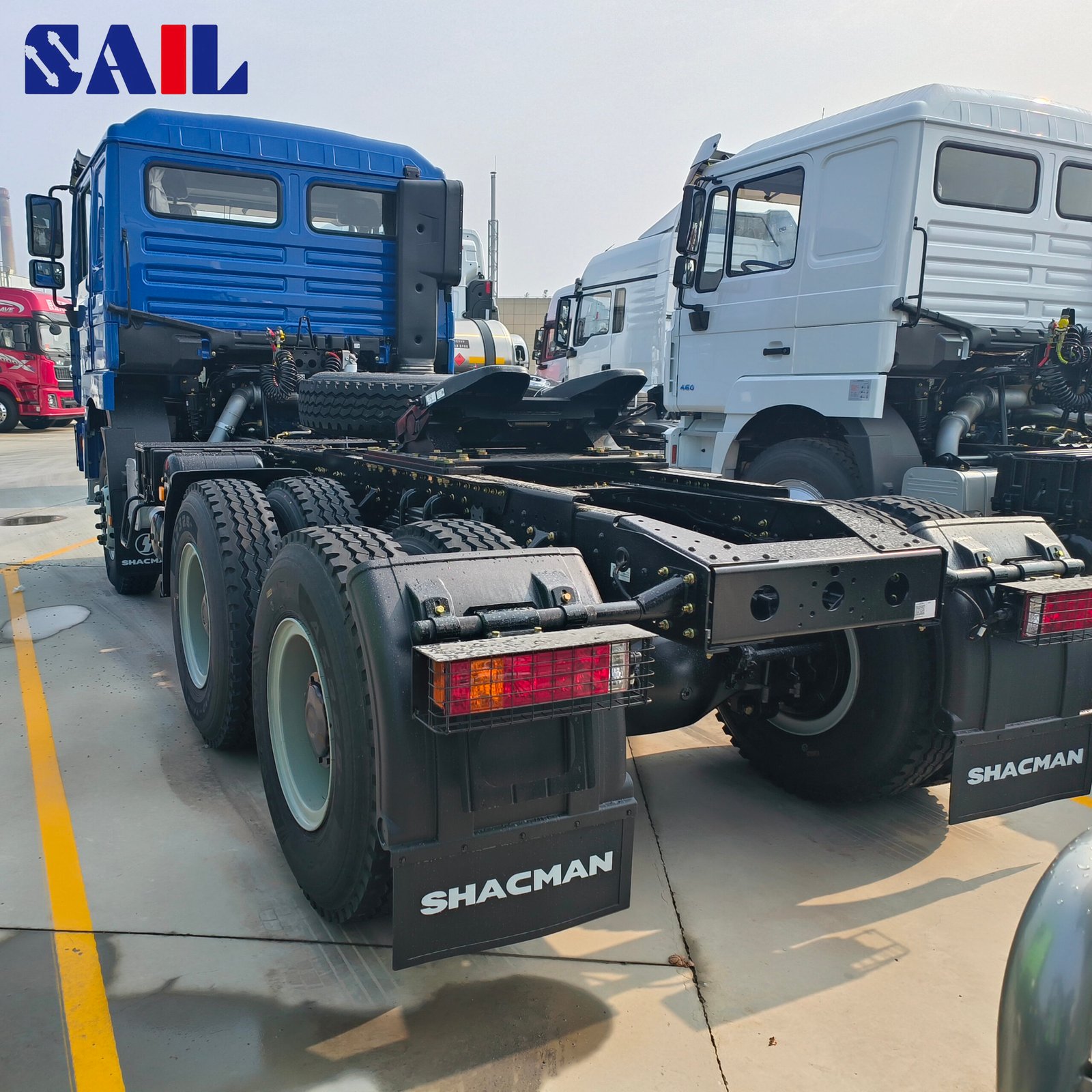

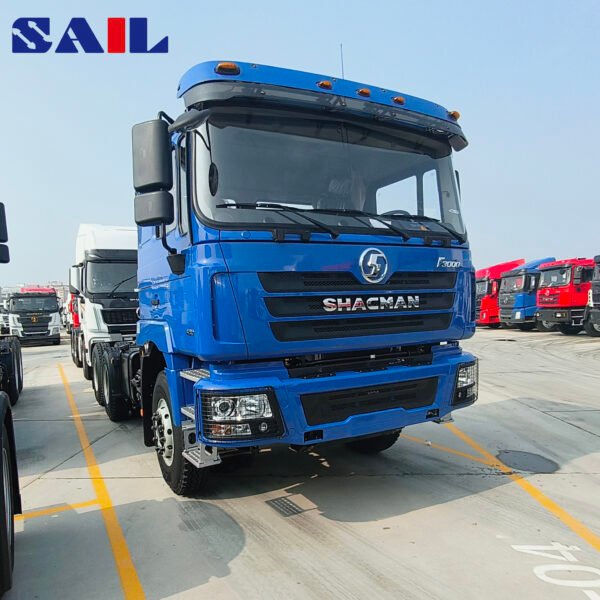

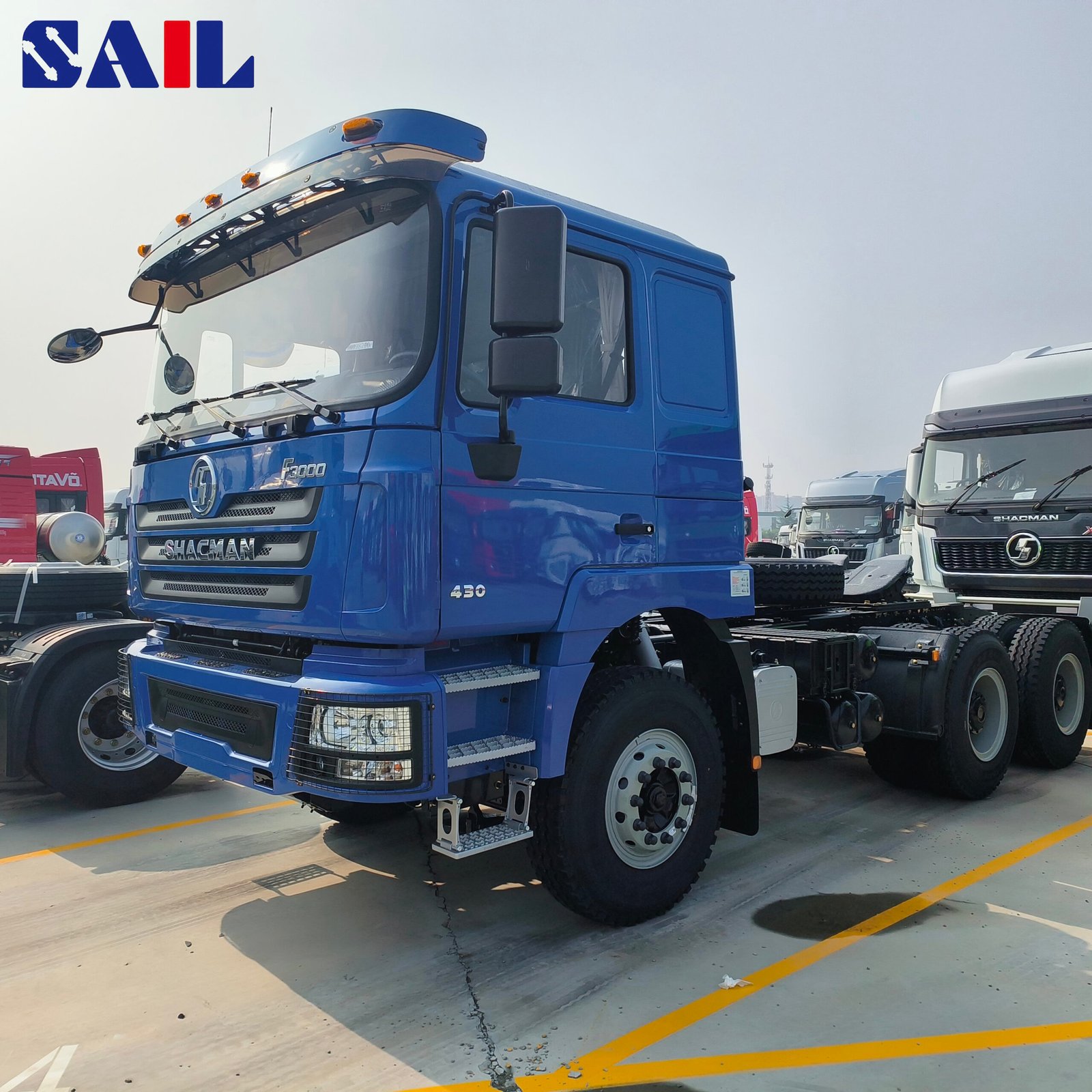

SHACMAN F3000 6×4 Tractor Truck | WP12.430 Euro II Engine | 430HP Prime Mover （for Guinea）

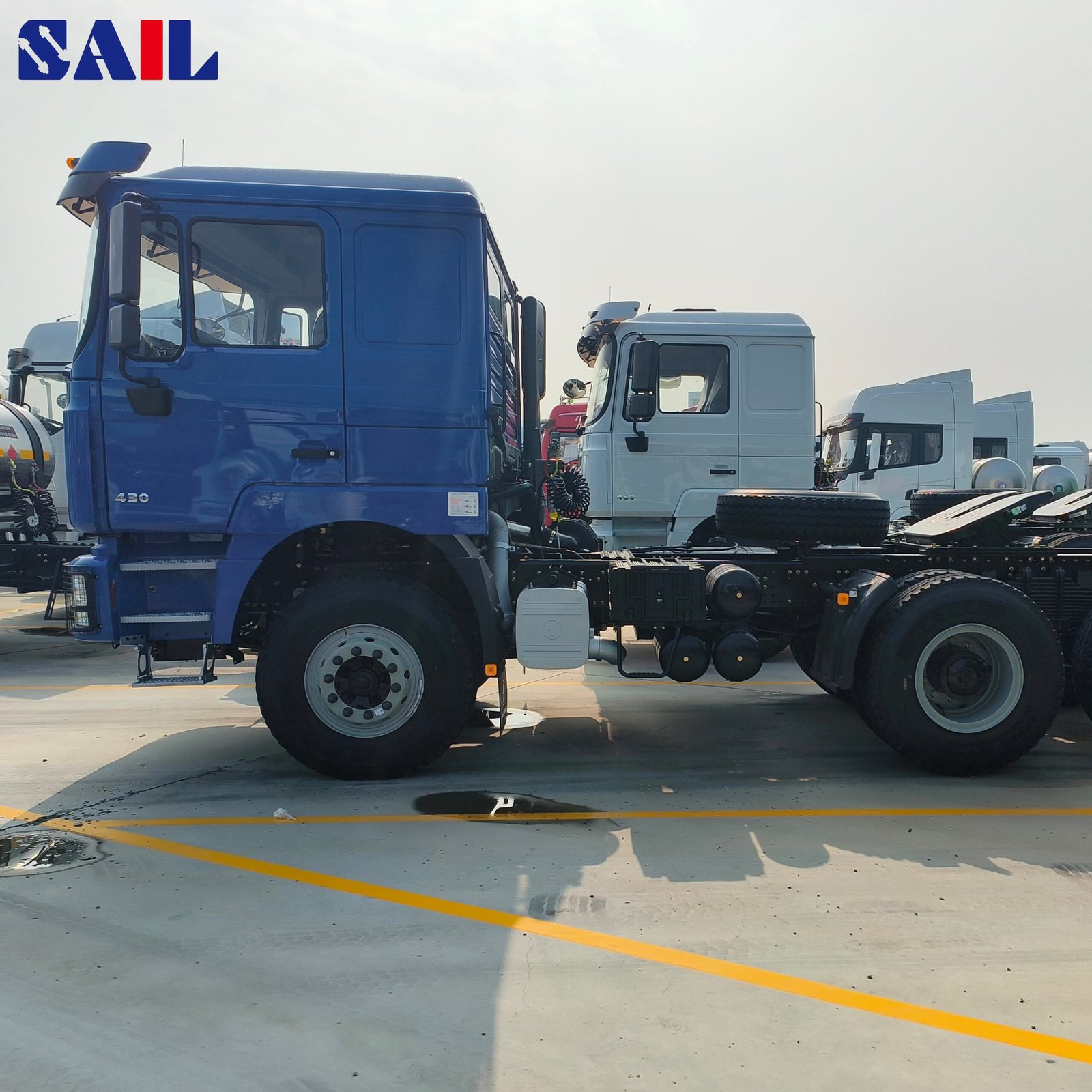

The SHACMAN F3000 6×4 tractor truck is specially configured for the Guinea market, offering a balance of power, durability, and cost efficiency. Powered by a Weichai WP12.430E201 engine with 430HP and 11.6L displacement, it meets Euro II emission standards while ensuring strong performance and reliable fuel economy.
This model is equipped with a 12-speed transmission, HANDE MAN 9.5T front axle, and a 16T MAN dual-stage rear axle with a 5.262 ratio, delivering excellent traction and stability for long-haul and heavy-duty operations. The ZF steering system and dual-circuit compressed air brake further enhance driving safety and control.

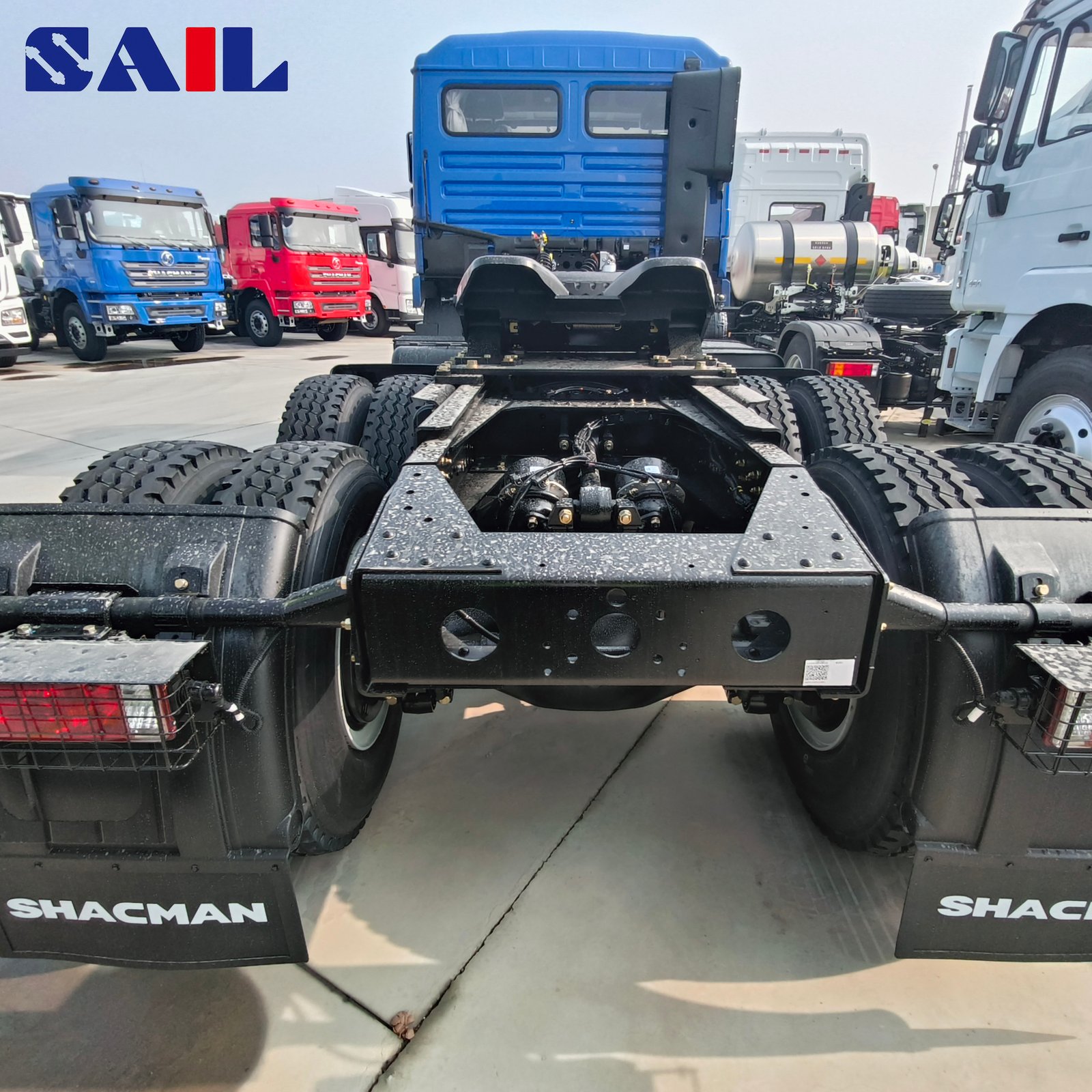

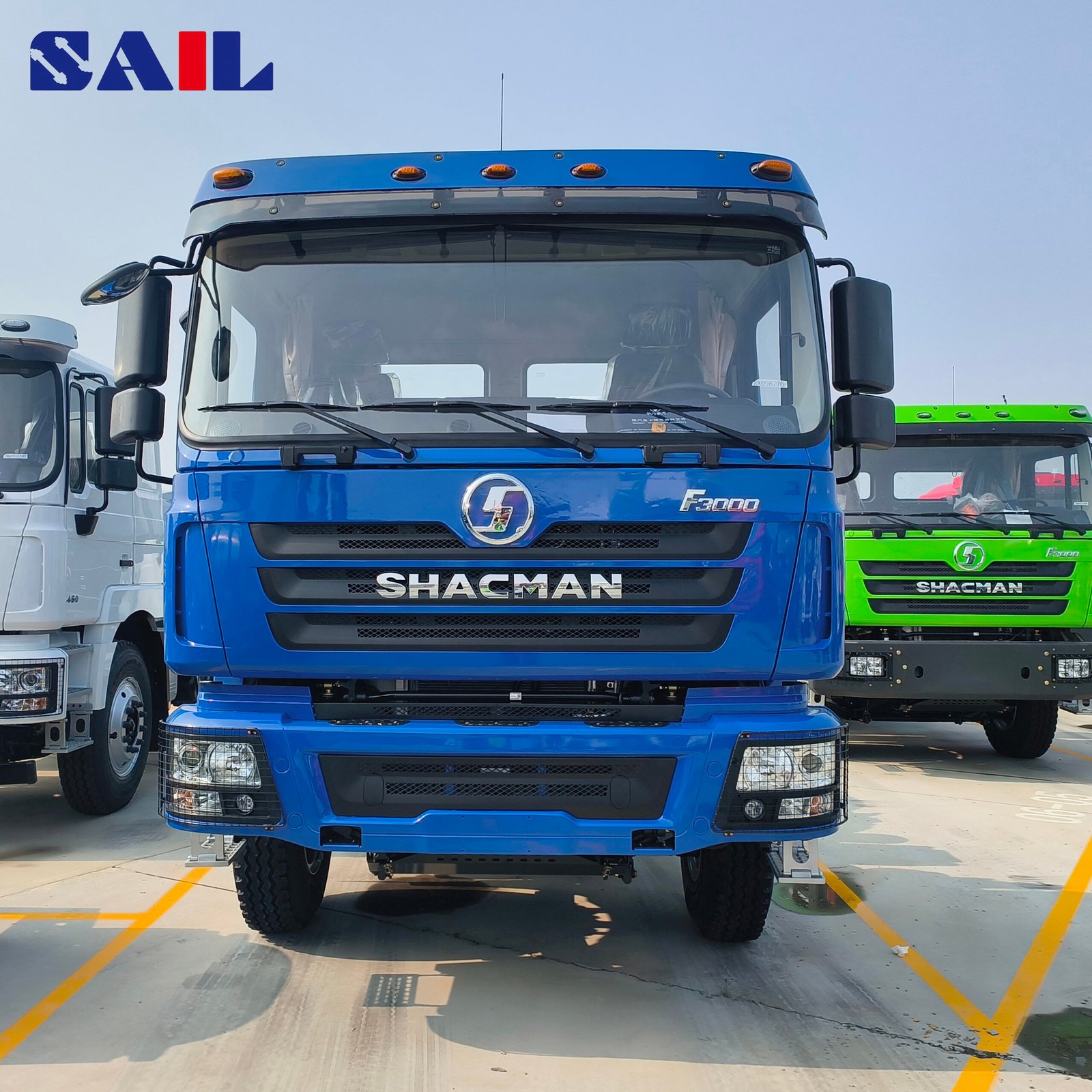

The F3000 extended flat roof cab is designed for driver comfort and practicality, featuring a hydraulic main seat, single refrigeration A/C, manual window system, steel bumper, three-level ladder, and reinforced JOST 90 saddle (JSK39DV1-46). A 380L iron fuel tank and 165Ah maintenance-free battery provide extended operating endurance.
Built on a robust chassis (850×300 mm) with front and rear multi-leaf spring suspension, this tractor truck is engineered to withstand tough road conditions while ensuring efficiency and reliability. With its reinforced structure and tailored Guinea configuration, the SHACMAN F3000 6×4 is a trusted solution for fleet owners seeking dependable heavy-duty transport.
| MODEL | SX4255JV324 | |
| Driver Position | left rudder | |
| Driving type | 6×4 | |
| Wheelbase(mm) | 3175+1400 | |
| Max. Speed(km/h) | 90km/h | |
| Engine | Brand | Weichai |
| Model | WP12.430E201 | |
| Emission Standard | EUROV | |
| Rated output power | 318KW/430HP | |
| Displacement(L) | Displacement:11.596L | |
| Transmission | Model | 12JSD200T-B+QH70 |
| Front axle | ||
| Model | MAN9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16 TMAN double-stage 5.262 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+7） | |
| Suspension | There are several front and rear leaf springs, four main plates + four horsemen | |
| Wheels and tires | 12.00R20 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Cabin | ||
| The F3000 extended flat roof cab is equipped with a hydraulic main seat, standard rearview mirrors, a single refrigeration air conditioning unit, manual window opening and closing mechanisms, a steel plate bumper, a three-level step-up platform, an oil bath air filter, standard exhaust system, an oil pan protection grille, a reinforced JOST 90 saddle (JSK39DV1-46), a split fender, a tail light protection grille, and a 165Ah maintenance-free battery | ||
| Fuel tank | 380L iron oil tank | |
