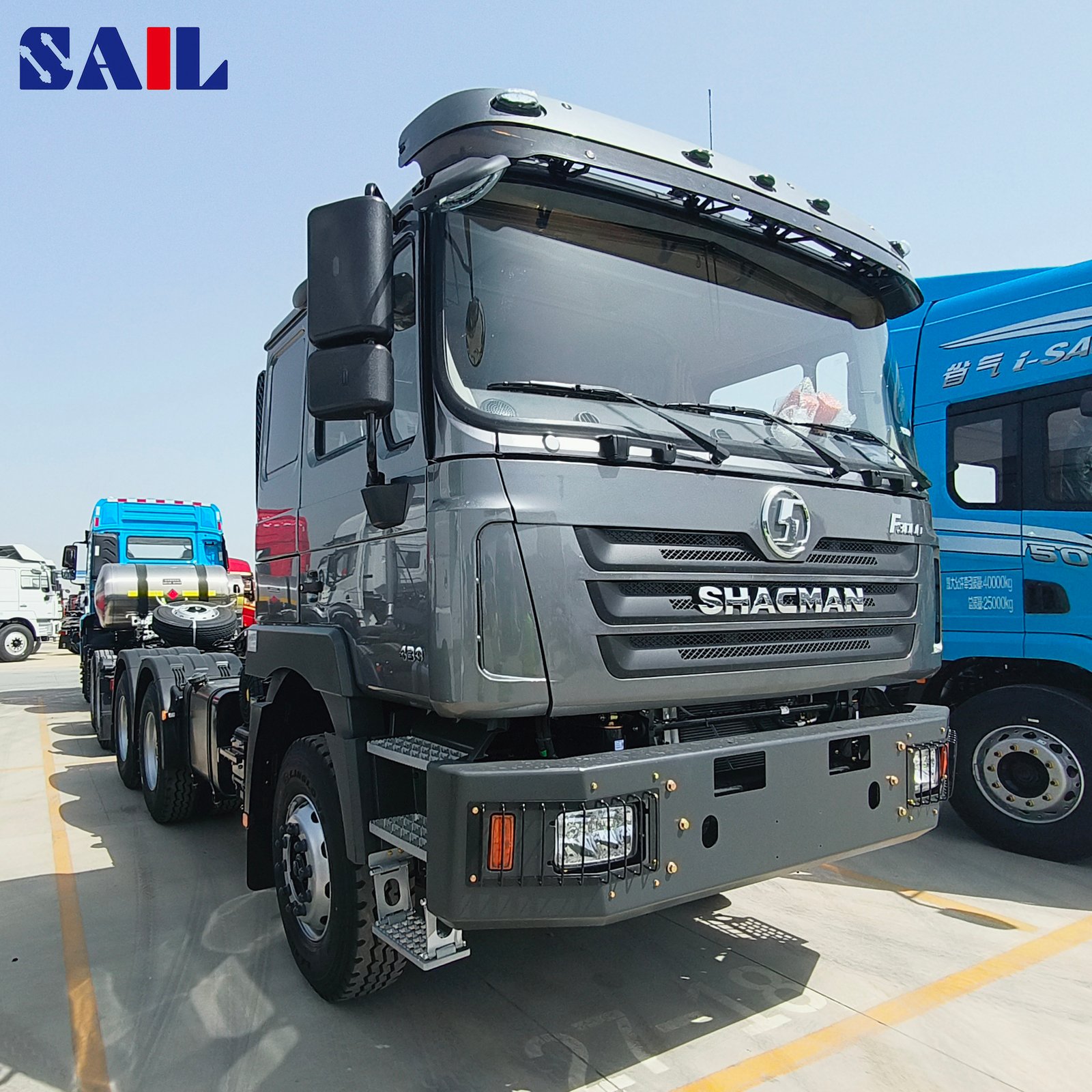

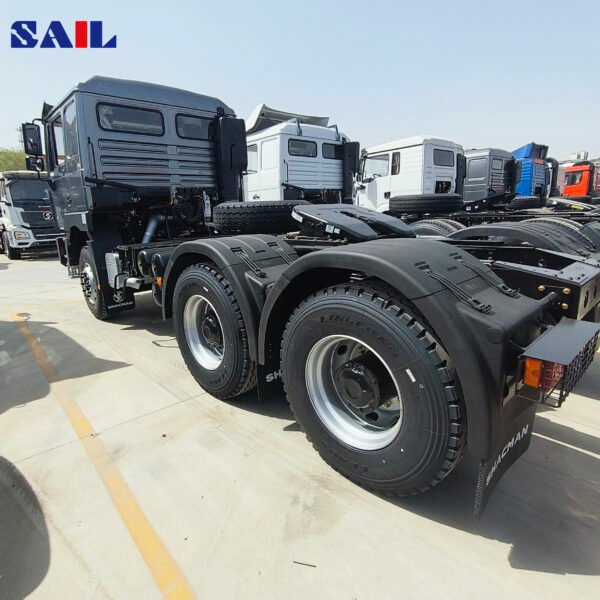

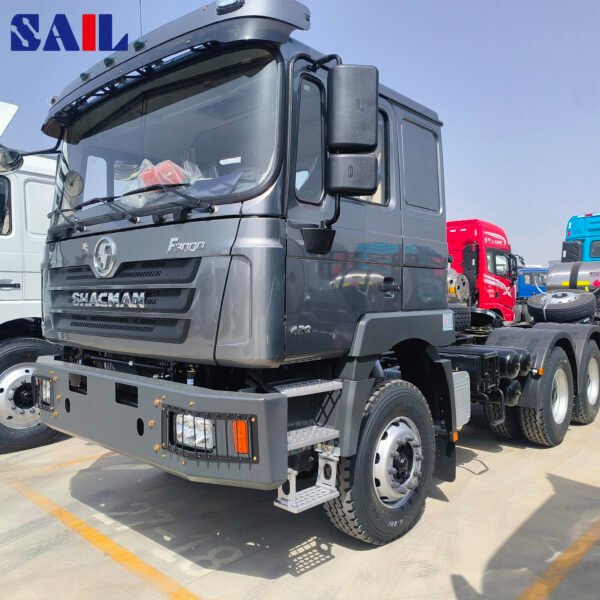

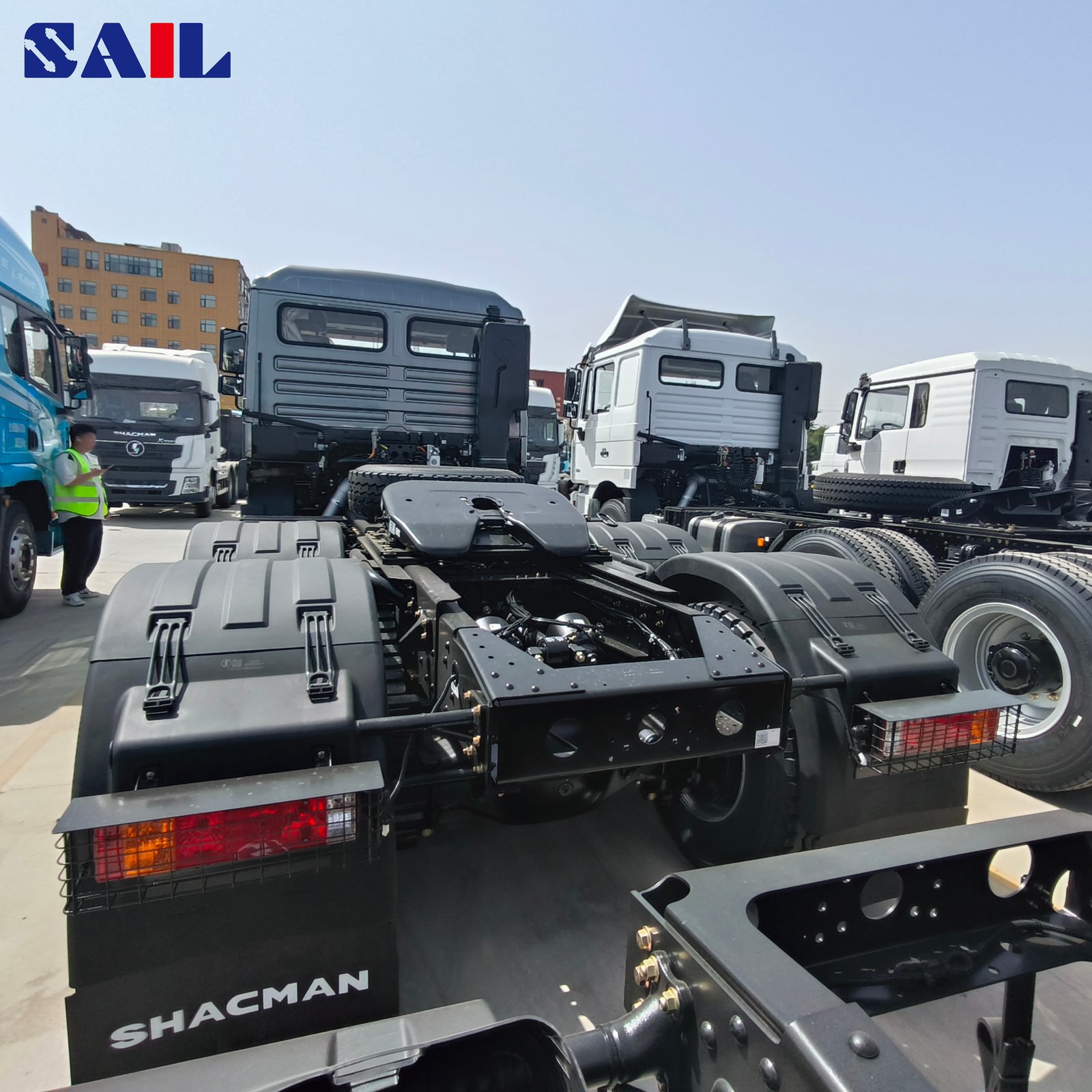

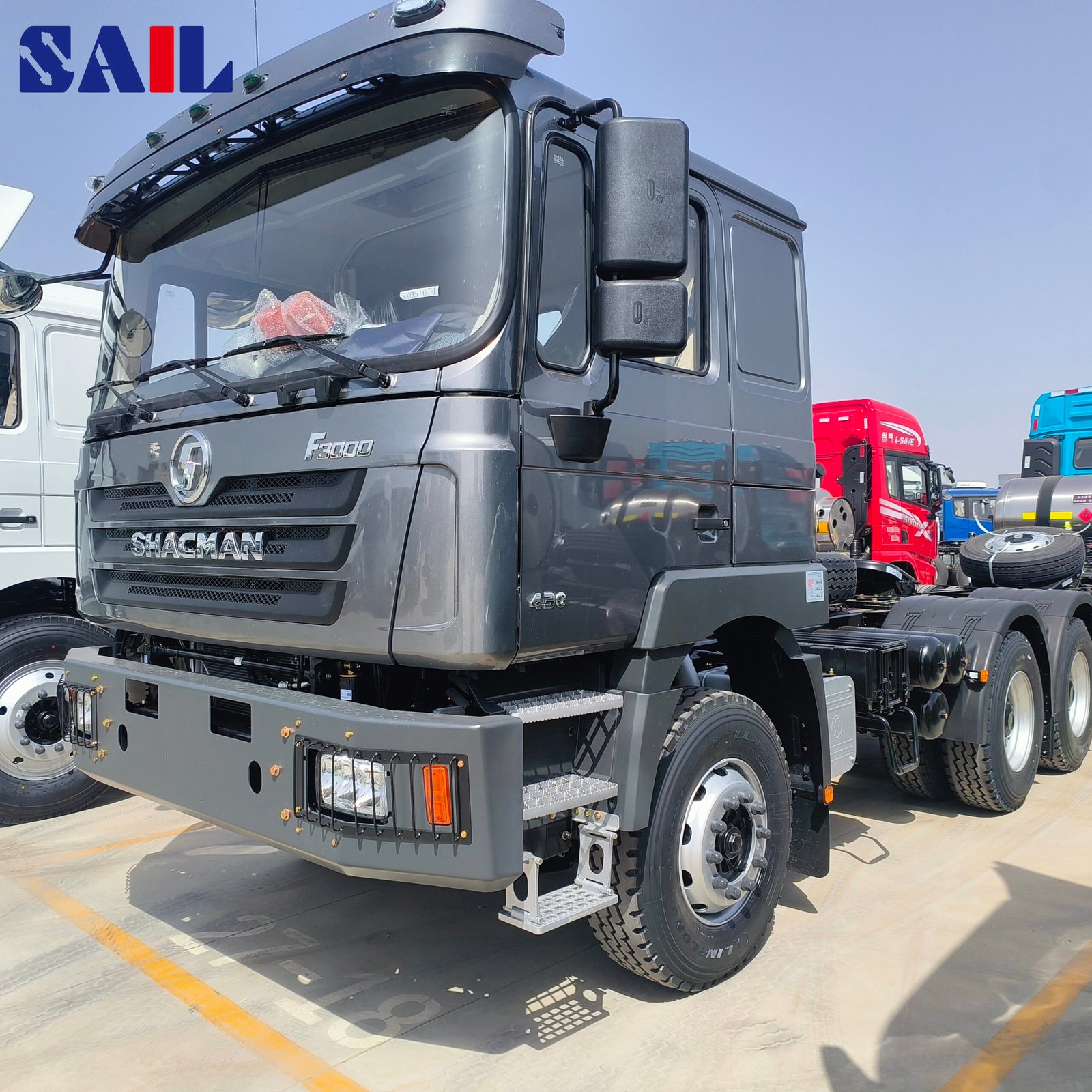

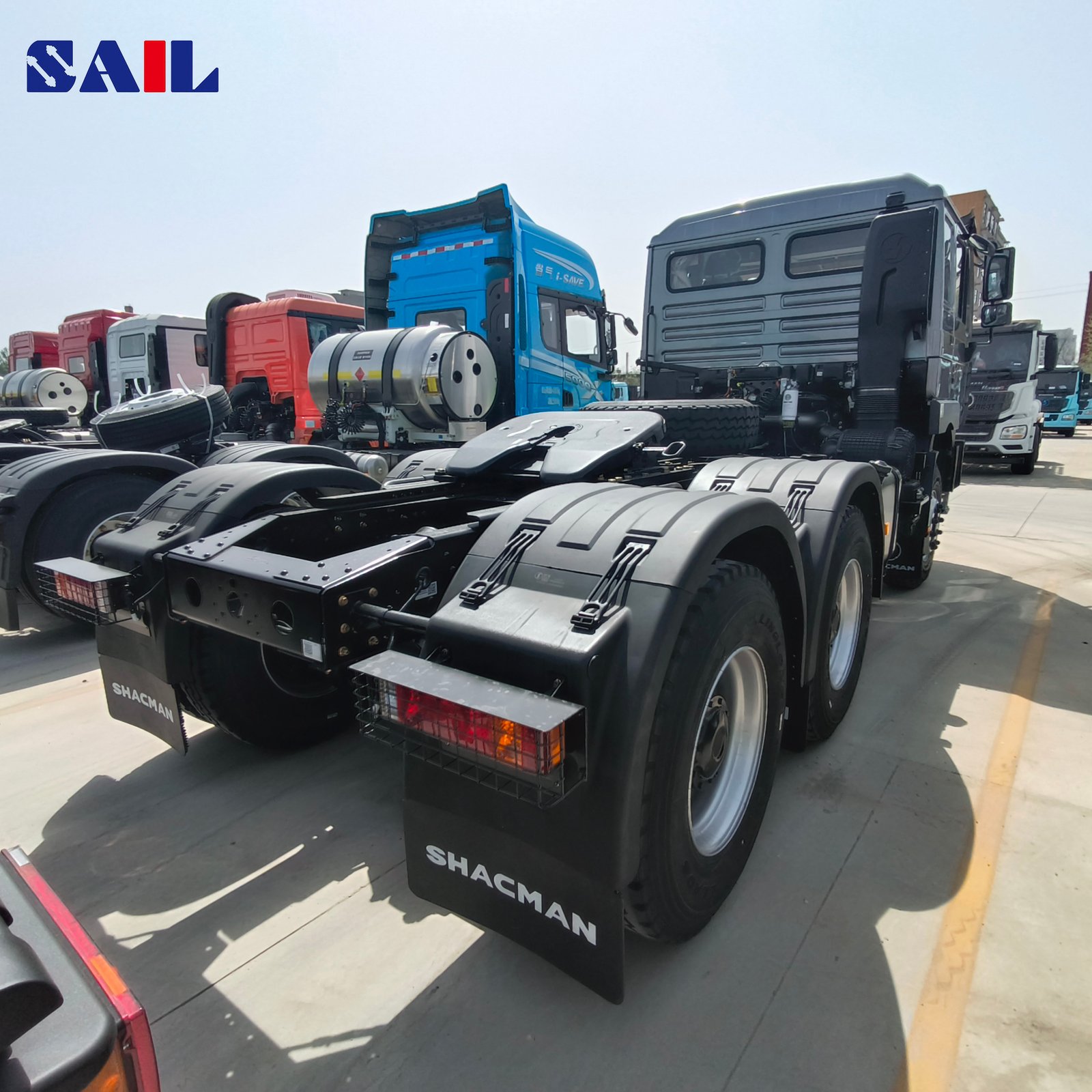

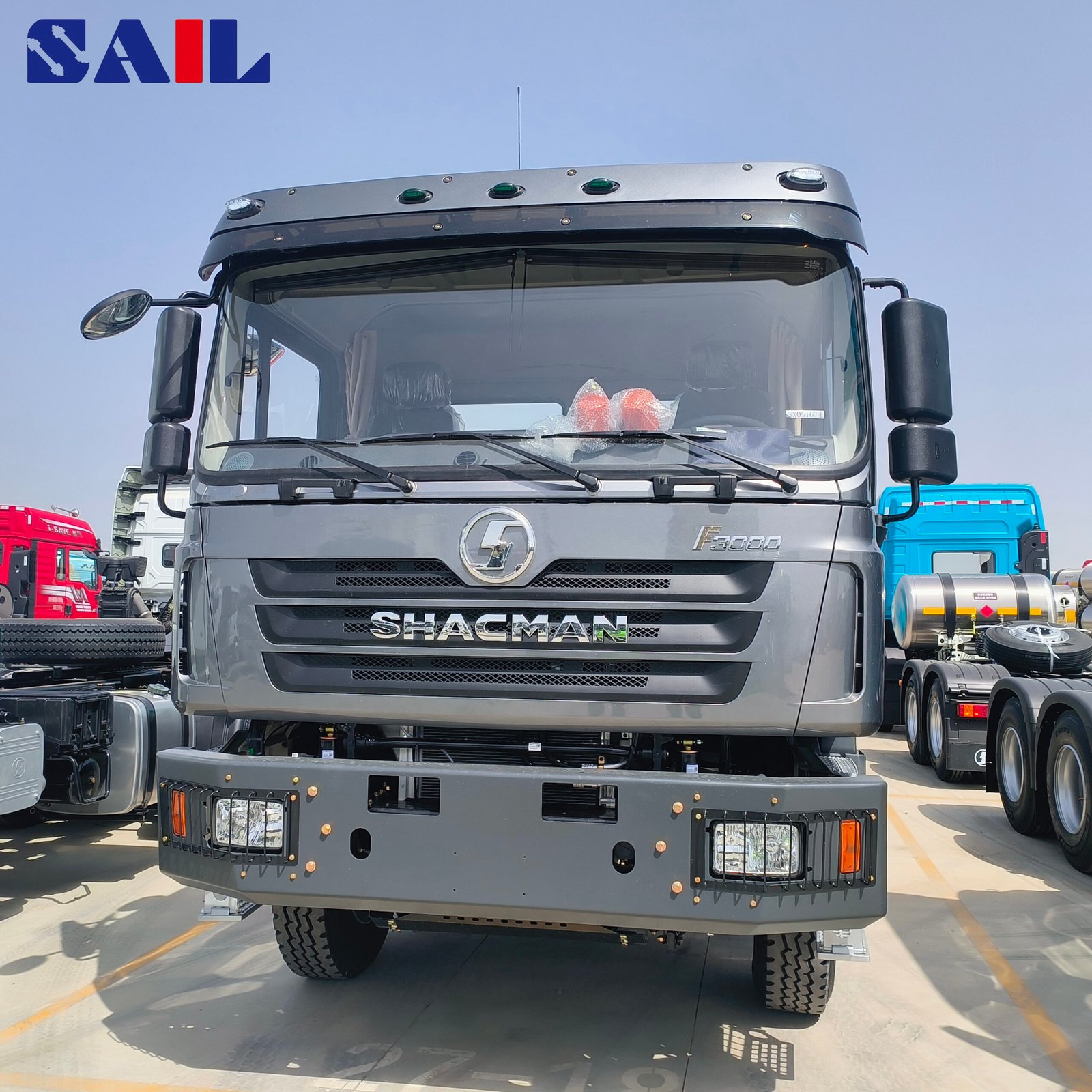

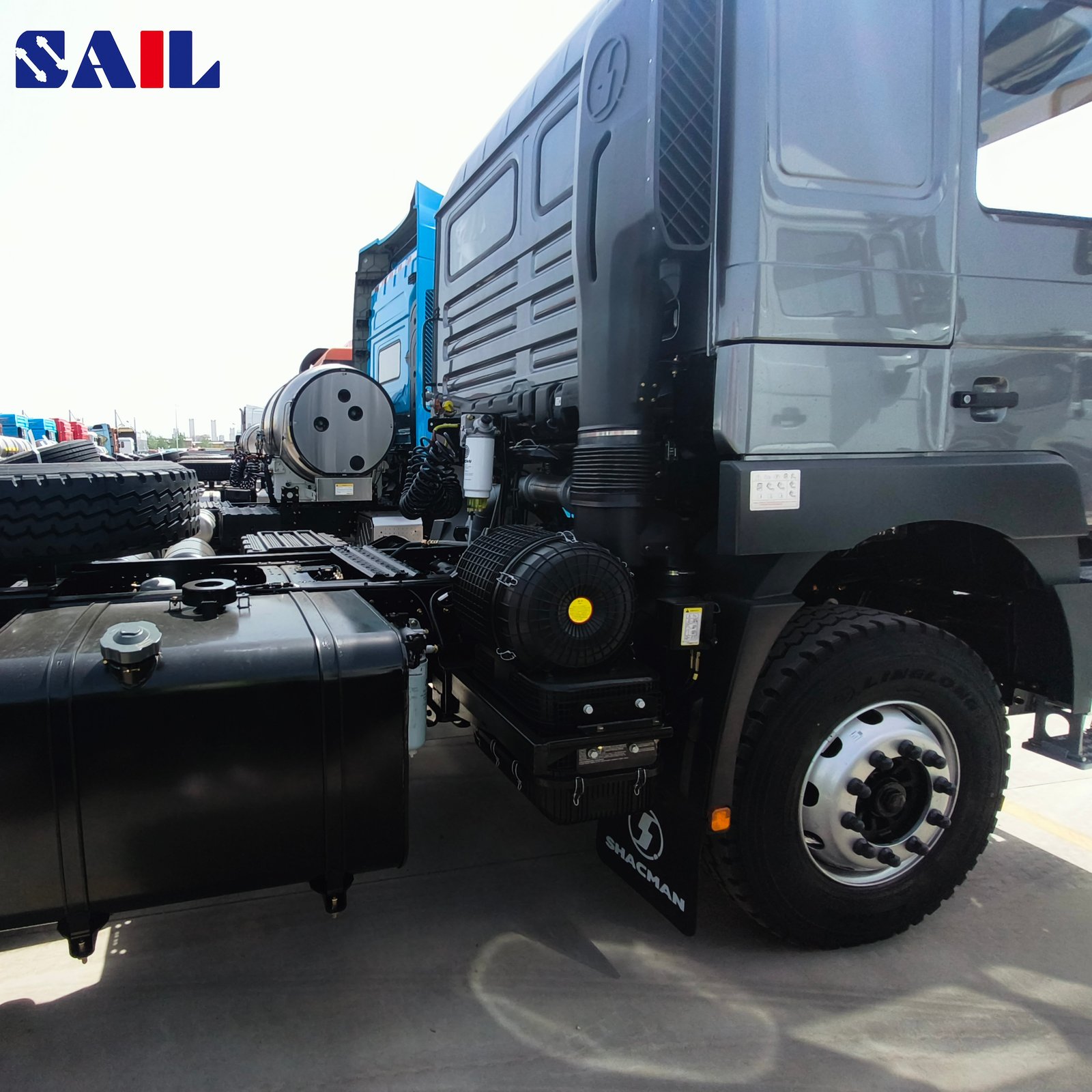

SHACMAN F3000 6×4 Tractor Truck | WP12.430 Euro II Engine | 430HP Heavy Duty Prime Mover（For Ghana）
Description
| MODEL | SX4255JV324 | |
| Driver position | Left Hand | |
| Driving type | 6×4 | |
| Wheelbase(mm) | 3175+1400 | |
| Max. Speed(km/h) | 80km/h | |
| Engine | Brand | WEICHAI |
| Model | WP12.430E201 | |
| Emission Standard | EUROV二 | |
| Rated output power | 316KW/430HP | |
| Displacement(L) | Displacement:11.596L | |
| Transmission | Model | 12JSD200T-B |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle/后桥 | Brand | HANDE |
| Model | 16 TMAN double-stage 4.266 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+7） | |
| Suspension | Before and after many piece reed four main piece + four horse riding | |

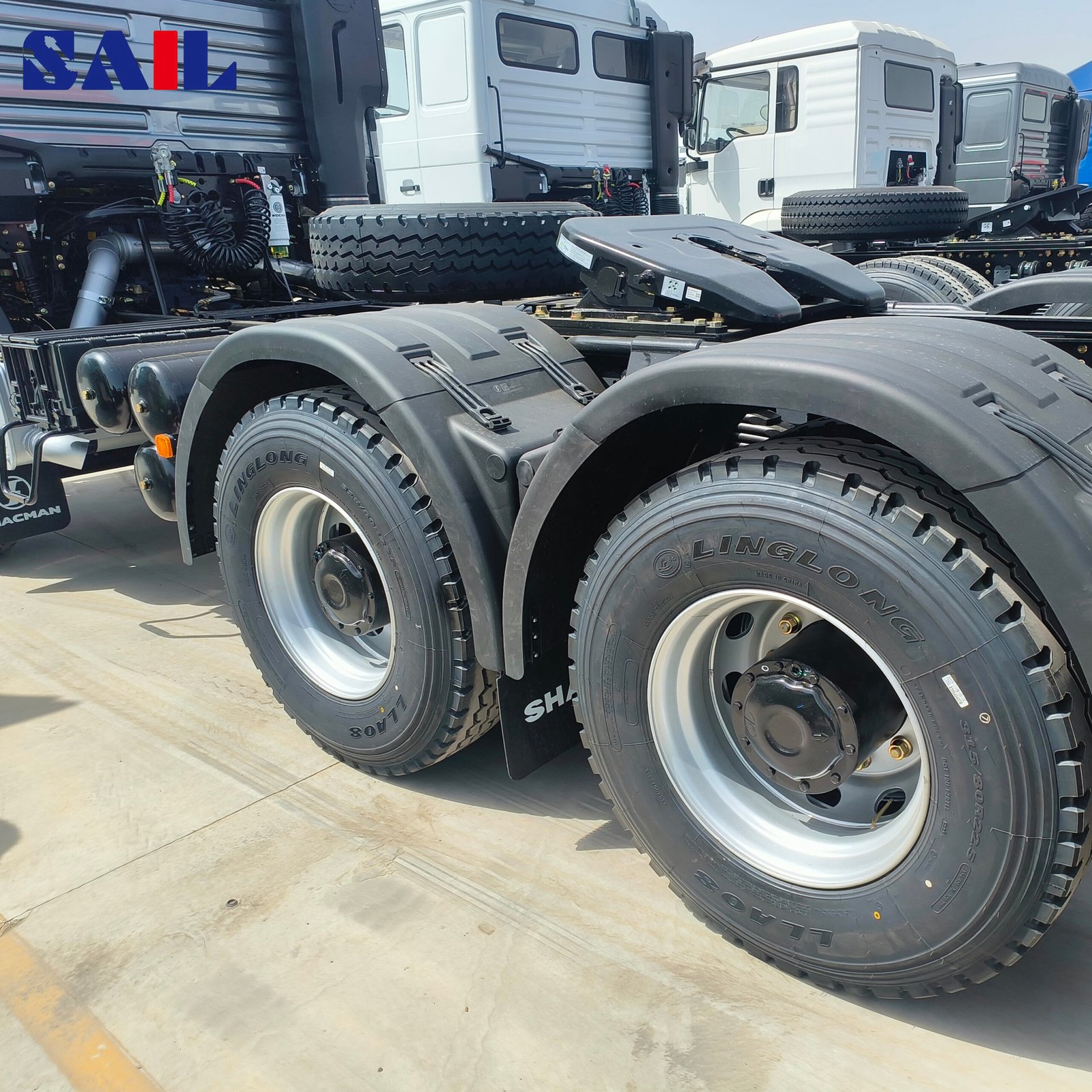

| Wheels and tires | 315/80R22.5 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | F3000 extended flat roof cab with top guide cover, air main seat, four hydraulic suspension, ordinary rearview mirror, single refrigeration air conditioning, hand shake window machine, manual flip, metal bumper-with lamp guard, three car pedal, ordinary air filter, ordinary exhaust, water tank protection gate, windproof oil casing protection gate, reinforced jost 90 saddle, front and rear stabilizer bar, split fender, taillight protection gate, 165Ah maintenance-free battery | |
| Fuel tank | 400L aluminum tanker | |
