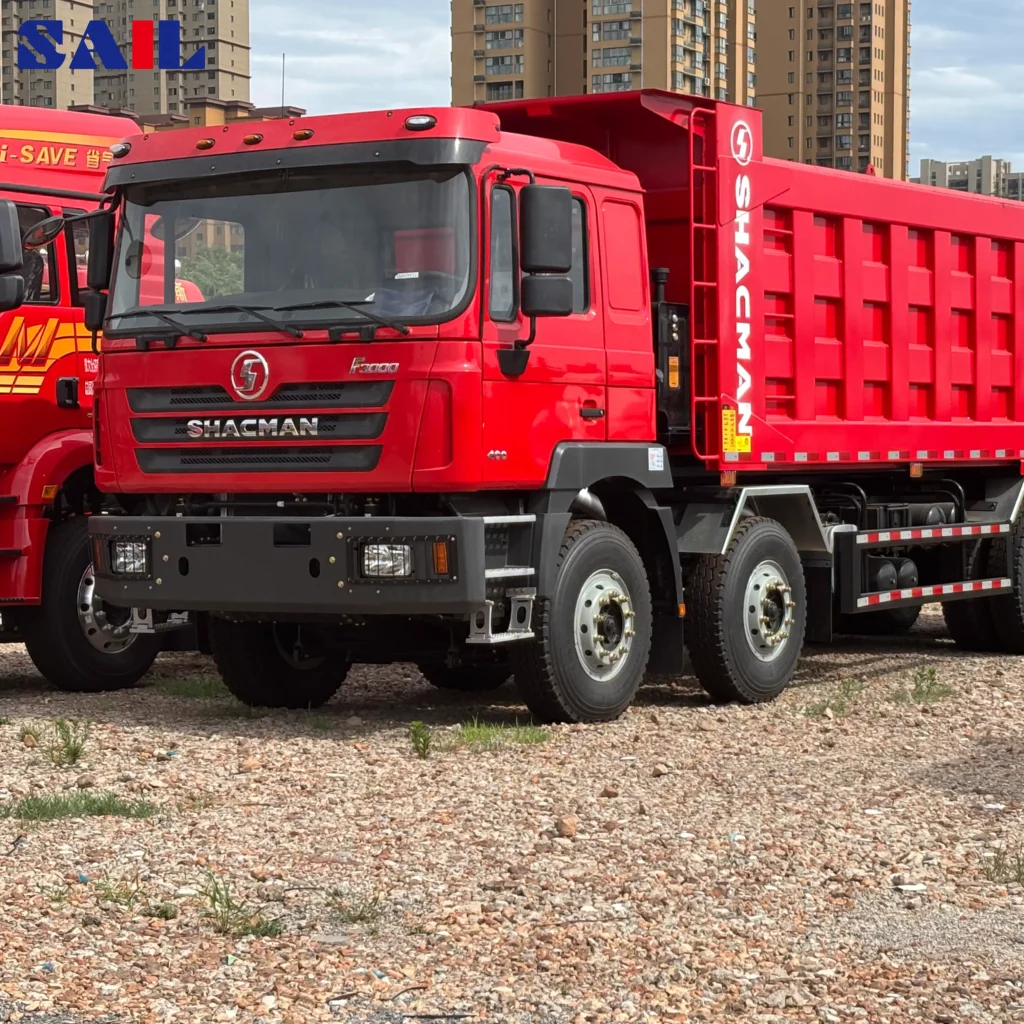

SHACMAN F3000 8×4 Dump Truck | WP12.400 Euro II Engine | 400HP Heavy Duty Tipper Truck （for Guinea）
The SHACMAN F3000 8×4 dump truck, specially configured for the Guinea market, is built to handle the toughest construction, mining, and heavy-duty transport tasks. Powered by a WEICHAI WP12.400E201 engine with 400HP and 11.6L displacement, it meets Euro II emission standards while ensuring reliable performance and fuel efficiency.
Equipped with a 10-speed transmission, HANDE MAN 9.5T front axle, and a reinforced 16T MAN dual-stage widened rear axle with a 5.92 ratio, this truck offers outstanding load capacity, traction, and durability. The robust chassis (850×320 mm) combined with multi-leaf spring suspension ensures stability and strength under heavy loads.
The F3000 extended flat roof cab is designed for both comfort and practicality. It features a hydraulic driver’s seat, four-point hydraulic suspension, single refrigeration air conditioning, manual window operation, steel bumper, oil bath air filter, reinforced JOST saddle, and a 380L iron fuel tank. Safety and convenience are further enhanced with dual-circuit compressed air brakes, engine exhaust brake, reversing buzzer, LED taillights, fire extinguisher, anti-theft fuel and battery systems, and a maintenance-free 165Ah battery.
With its powerful engine, reinforced structure, and tailored Guinea market configuration, the SHACMAN F3000 8×4 dump truck is the ideal choice for fleet operators seeking efficiency, reliability, and long-term value in demanding working environments.
| MODEL | SX3315DU406 | |
| Driver Position | Left Hand | |
| Driving type | 8×4 | |
| Wheelbase(mm) | 1800+3975+1400 | |
| Max. Speed(km/h) | 74km/h | |
| Engine | Brand | WEICHAI |
| Model | WP12.400E201 | |
| Emission Standard | EUROV | |
| Rated output power | 294KW/400HP | |
| Displacement(L) | Displacement:11.596L | |
| Transmission | Model | 10JSD180+QH50 |
| Body | front 7800×2300×1700 floor 10& side 8
|
|
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double-stage widened bridge -5.92 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame/车架 | 850×320（8+7） | |
| Suspension | Front and rear multi-piece reed four main piece + four horse-riding bolts | |
| Wheels and tires | 12.00R20 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | F3000 long flat roof cab without top guide cover, hydraulic main seat, four hydraulic suspension, single refrigeration air conditioning, hand shake window machine, manual flip, steel bumper, three car pedal, oil bath air filter, ordinary exhaust, oil casing, rear bottom stabilizer bar, strengthen the rear light protection gate, 165Ah maintenance-free battery, wing plate silencer casting bracket, two dangerous warning lights, SHACMAN identification, all English logo, add a long-term filter, iron cylinder, 9. 0 rim, fuel tank belt protection, reversing buzzer, 32T jack, 2 KG fire extinguisher, reinforced plate spring, LED taillight, fuel systemic anti-theft, battery box anti-theft, bumper reserved for installation and LED headlight installation hole | |
| Fuel tank | 380L iron oil tank | |
