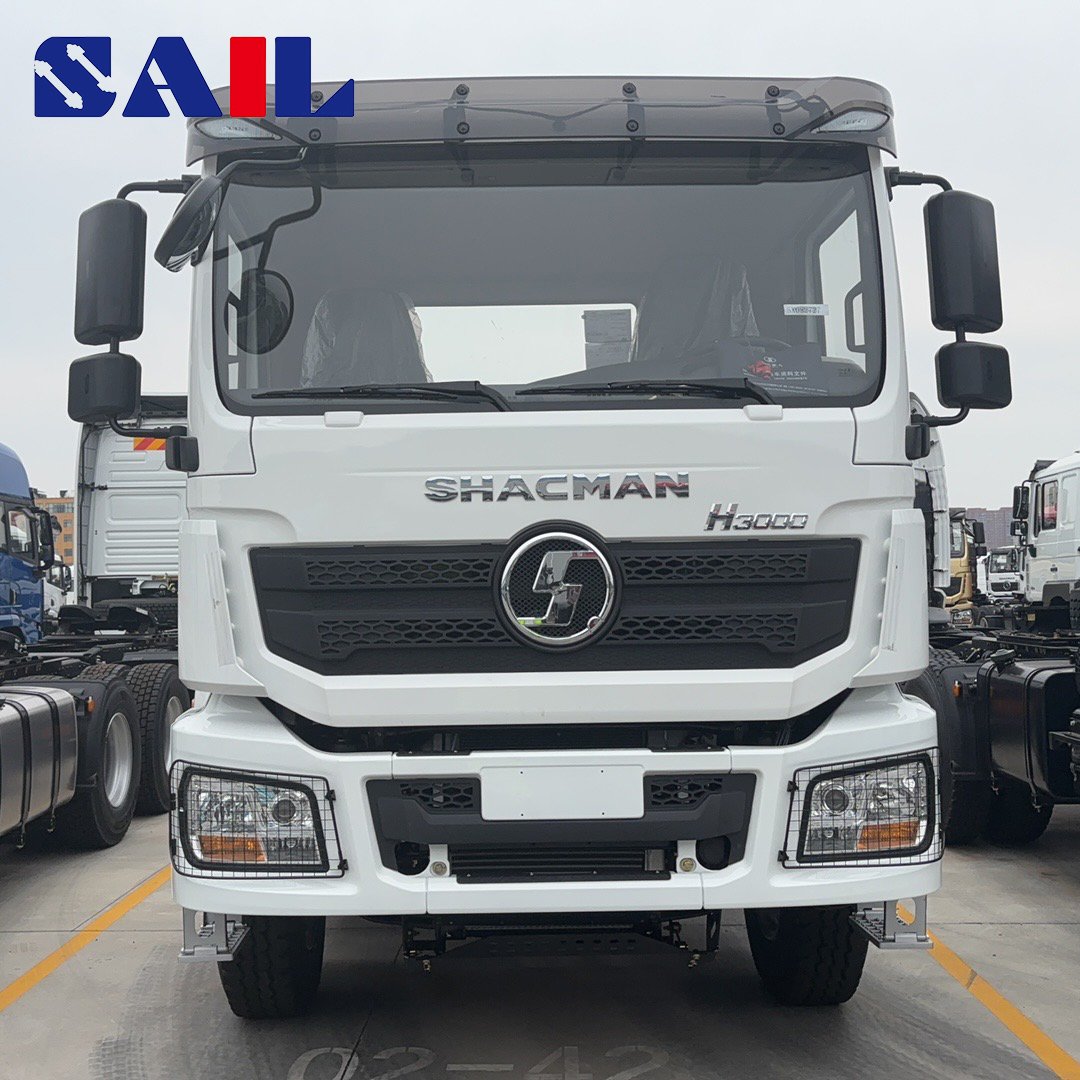

The SHACMAN SX4255HV384 6×4 tractor truck, built on the advanced H3000 platform, is engineered for heavy-duty logistics and long-haul transport. Equipped with a Weichai WP12.430E201 engine delivering 430HP and Euro II emission compliance, it ensures strong power output, reliability, and fuel efficiency.
This super strong version features a 12-speed transmission, MAN 9.5T front axle, and a 16T MAN dual-stage rear axle with a 4.266 ratio, providing outstanding stability and durability under demanding road conditions. The chassis (850×300 mm) and multi-leaf spring suspension system enhance load capacity and driving comfort.

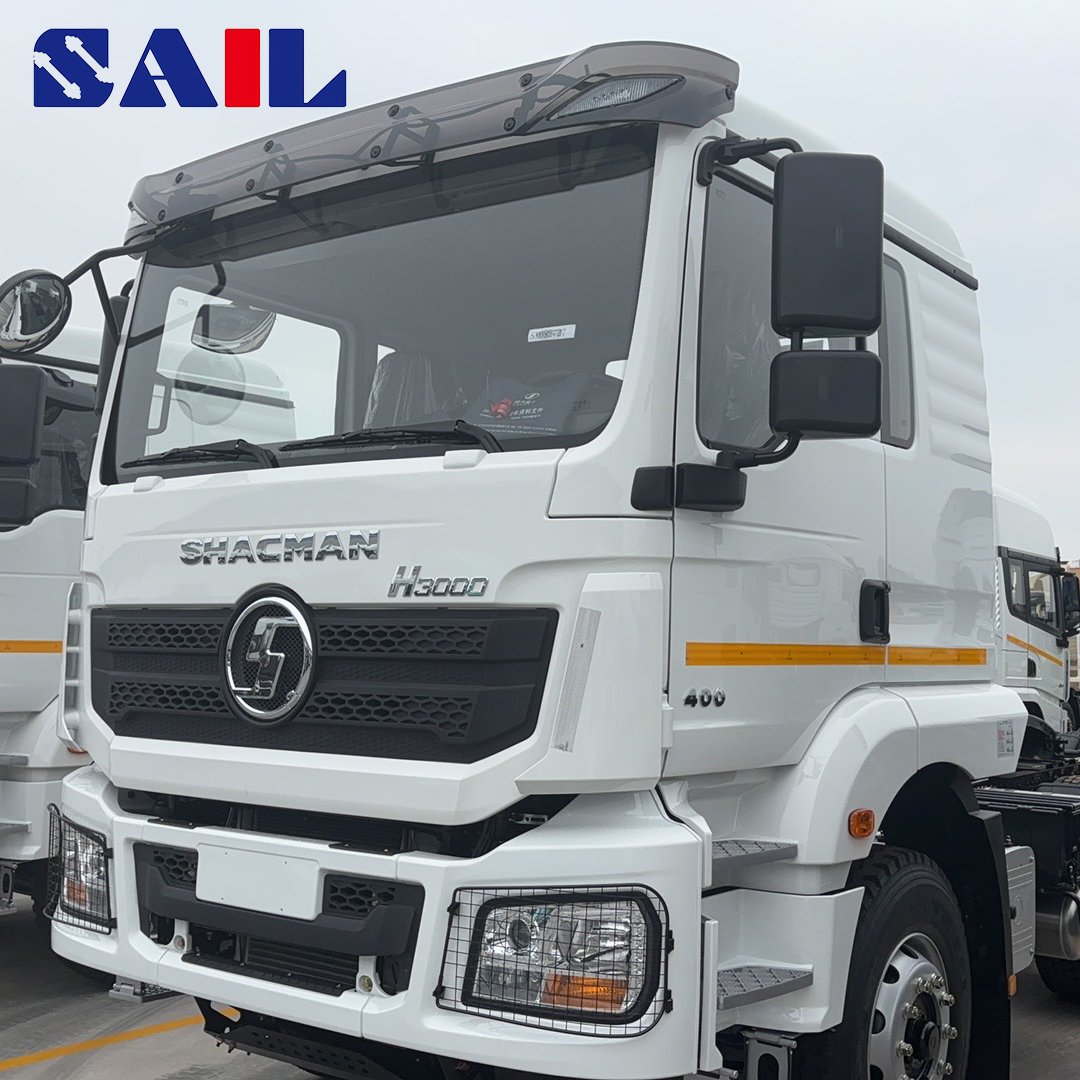

The extended flat-top cab offers ergonomic design with a hydraulic main seat, air conditioning, multifunctional steering wheel, and reinforced Jost 90 saddle, ensuring comfort and safety for drivers. Additional components such as a 600L aluminum alloy fuel tank, maintenance-free battery, and protective guards make it ideal for continuous operation in global markets.
| Platform | H3000 | |
| Drive type | 6×4 | |
| AEdition | Super Strong Version | |
| Model | SX4255HV384 | |
| Engine | Model | WP12.430E201 |
| Horsepower | 430 | |
| Discharge | Euro Ⅱ | |
| Gear box | 12JSD200T-B | |
| Cab | Extended flat top | |
| The highest speed (km/h) | 45～85 | |
| Chassis(mm) | 850×300 (8+5) | |
| Wheelbase (mm) | 3175+1400 | |
| Axle speed ratio | 4.26616T MAN dual-stage 4.266 axle ratio | |
| Front axle | MAN 9.5T | |
| Suspension | Front and rear multi-leaf springs (four main leaves and four auxiliary leaves) | |
| Fuel tank | 600L Aluminum Alloy Fuel Tanks | |
| Tires | 315-80R22.5 | |
| Other configuration | The H3000S extended semi-high cab is equipped with a hood, hydraulic main seat, rod-type rearview mirror, single refrigeration air conditioning, electric window opener, manual folding, metal bumper with light guard, three-level step-up, oil bath air filter, standard exhaust, domestic steering gear, multifunctional steering wheel, reinforced Jost 90 saddle seat, split fenders, left front traction pin, oil pan protection grille, front stabilizer bar, taillight protection grille, and a 165Ah maintenance-free battery | |
