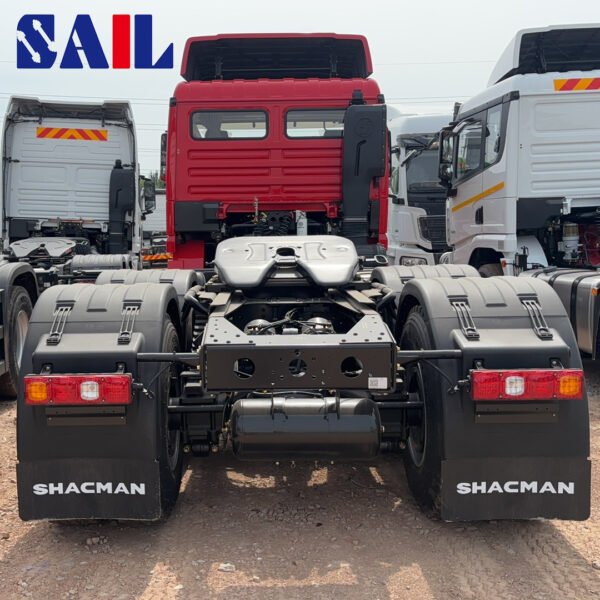

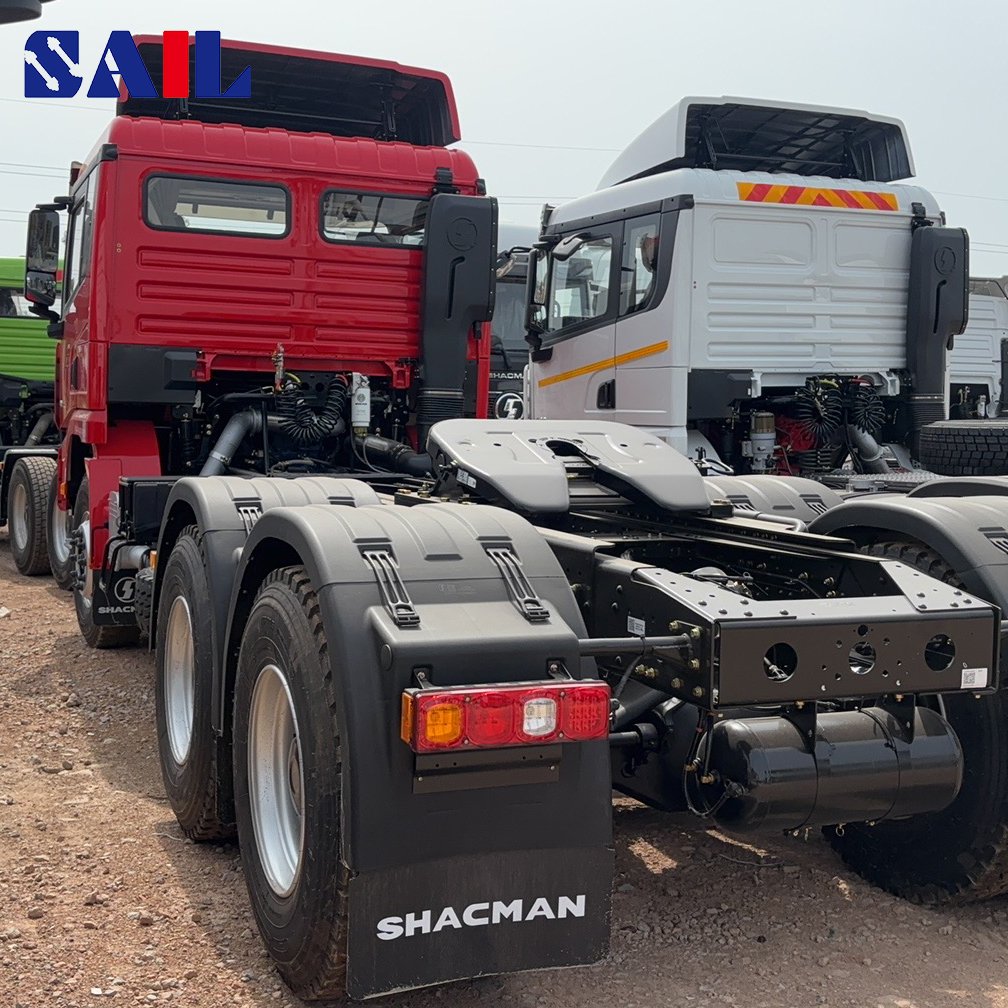

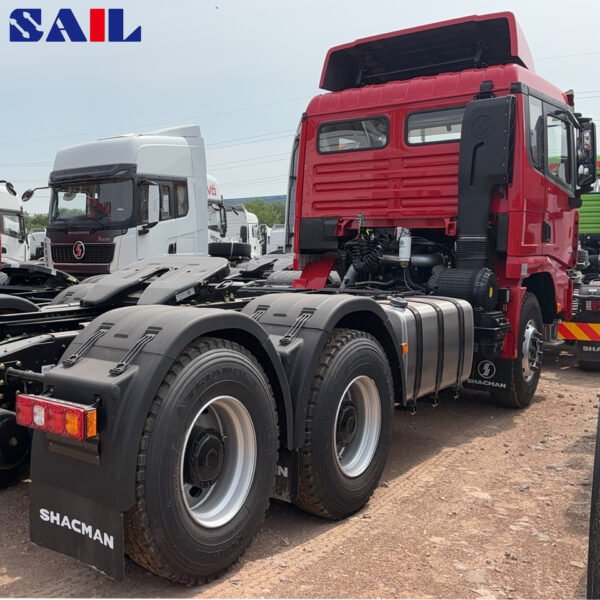

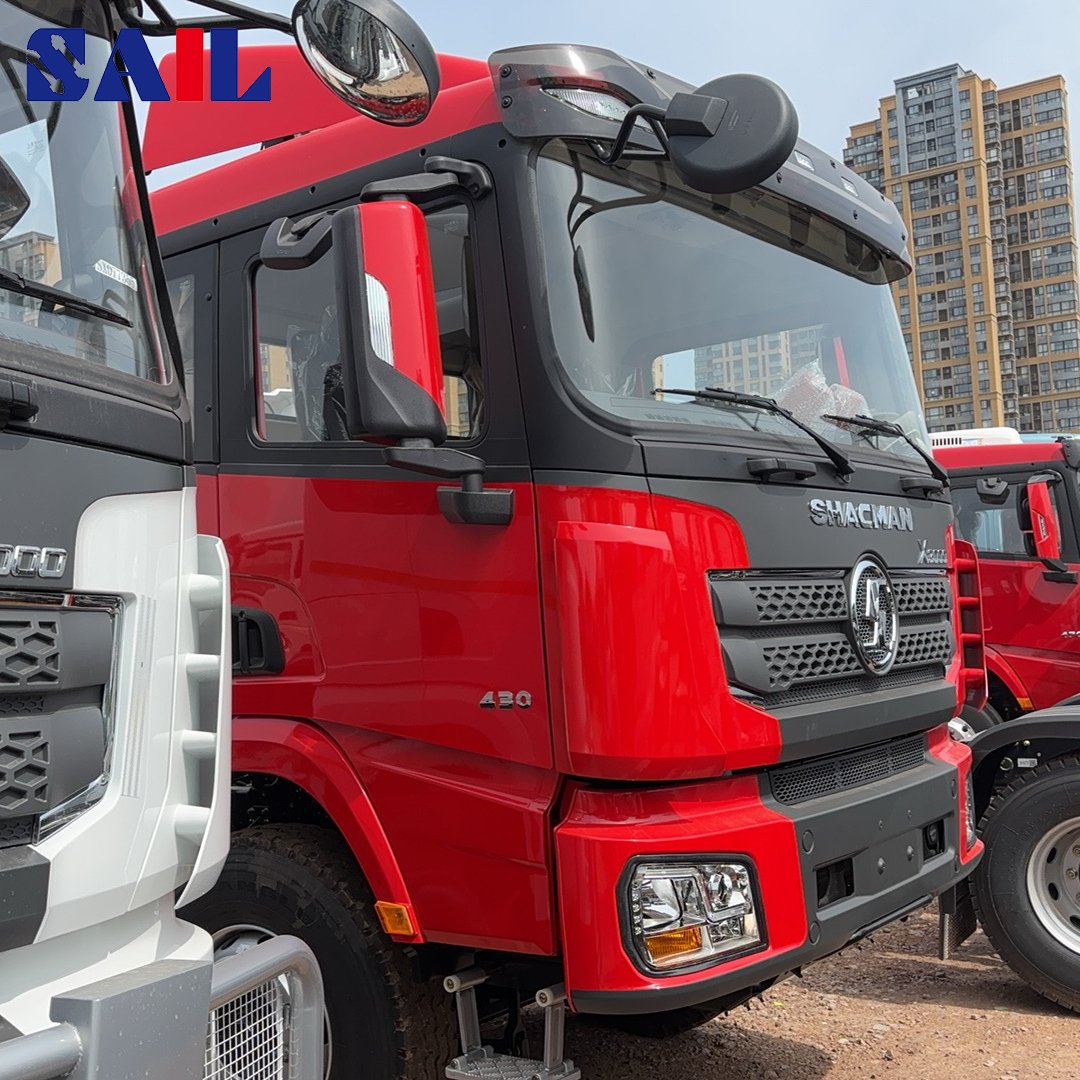

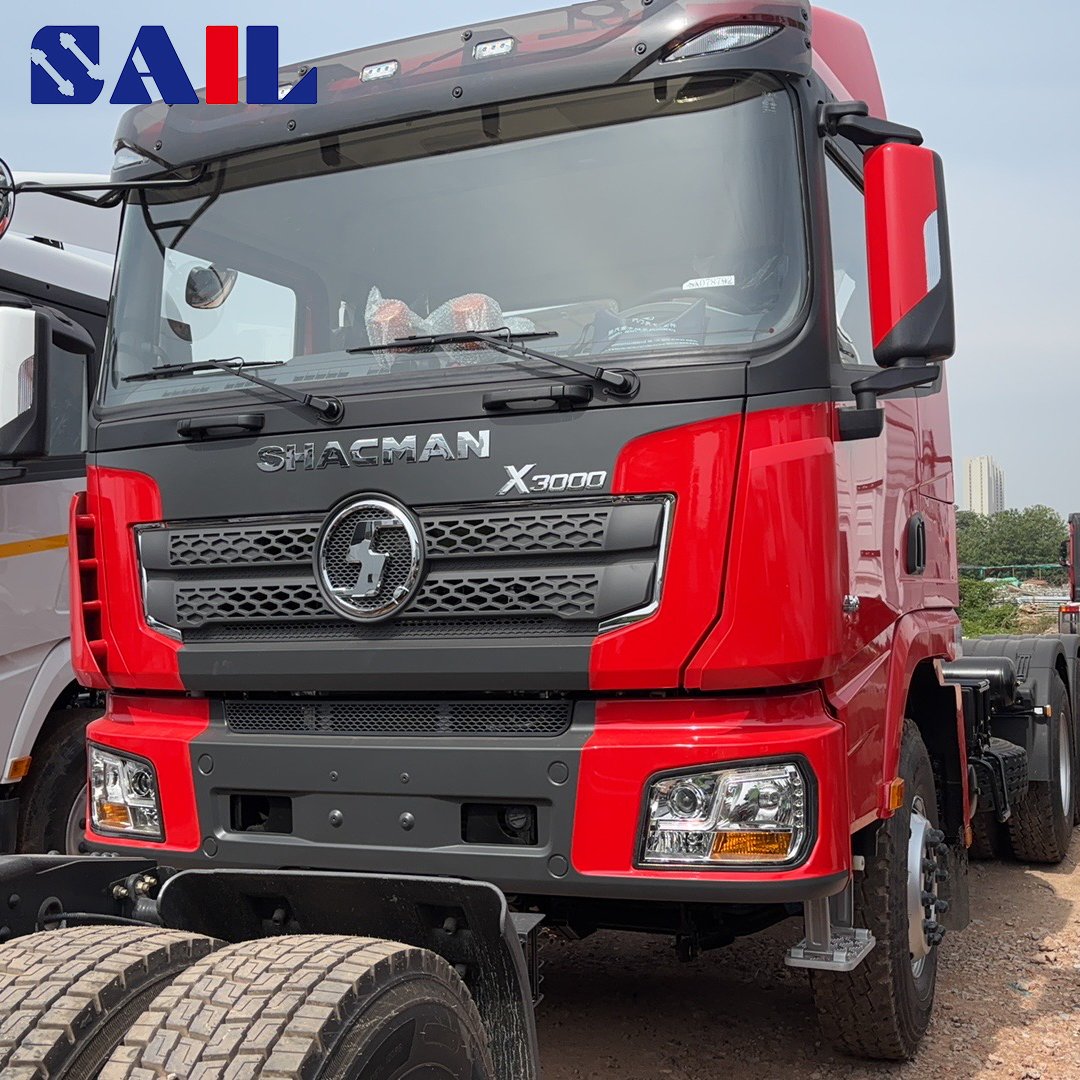

SHACMAN X3000 6×4 Tractor Truck 430HP Heavy Duty Prime Mover（For Ghana）
The SHACMAN X3000 6×4 tractor truck is engineered for reliable long-haul and heavy-duty transport. Powered by a Weichai WP12.430 Euro II engine delivering 430 horsepower, it offers strong performance and efficiency across diverse road conditions.
Built with a HANDE 16T MAN rear axle, a 12-speed transmission, and ZF steering technology, this model ensures excellent durability, stability, and easy handling. The X3000 cab provides a comfortable driving experience with an extended flat-top design, air suspension seat, air conditioning, and essential safety features.
With a 600L aluminum alloy fuel tank, robust chassis, and heavy-load suspension, the SHACMAN X3000 is designed to maximize uptime and lower operating costs, making it a trusted choice for logistics companies and fleet owners worldwide.
| MODEL | SX42555V384 | |
| Driver’s Position | Left rudder | |
| Driving type | 6×4 | |
| Wheelbase(mm) | 3775+1400 | |
| Max. Speed (km/h) | 90km/h | |
| Engine | Brand | Weichai |
| Model | WP12.430E201 | |
| Emission Standard | EUROII | |
| Rated output power | 318KW/430HP | |
| Displacement(L) | 11.596L | |
| Transmission | Model | 12JSD200T-B+QH70 |
| Front axle | Brand | HANDE |
| Model | MAN9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16 TMAN double-stage 4.769 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+7） | |
| Suspension | Before and after many reed | |
| Wheels and tires | 13.00R20 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Without ABS | ||
| Cabin | ||
| X3000 extended flat top cab with top guide cover, air main seat, ordinary rearview mirror, single refrigeration air conditioning, electric shake window machine, manual flip, metal bumper, three car pedal, oil bath air filter, ordinary exhaust, water tank protection grid, ordinary 90 saddle, three-section integral fender, 165Ah maintenance-free battery; | ||
| Fuel tank | 600L aluminum alloy oil tank | |
